The Hidden History of the AMG Affalterbach Crest

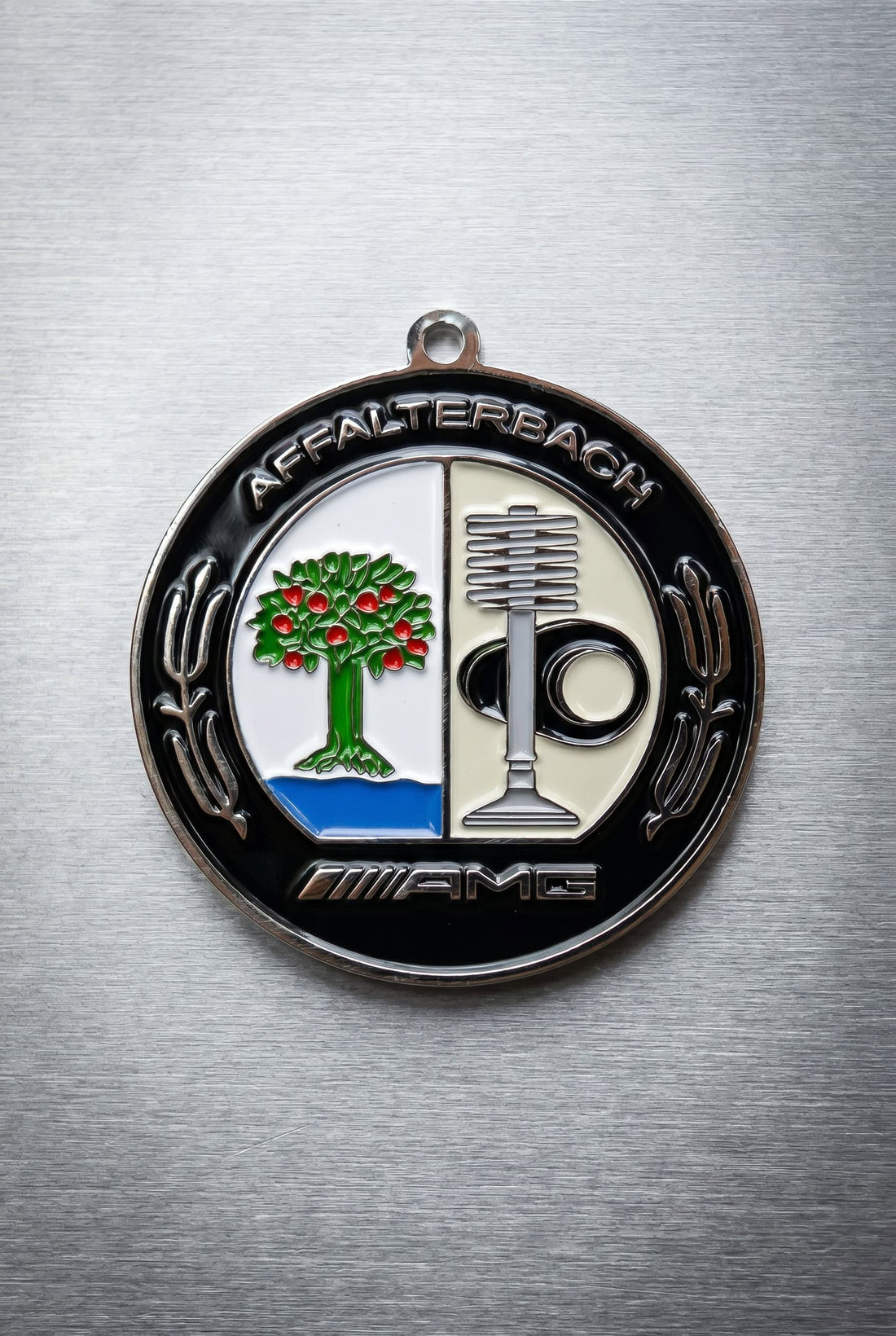

The AMG Affalterbach crest is a circular maker's mark split down the middle: the left half reproduces the official coat of arms of Affalterbach, a Swabian town whose name translates from Middle High German as apple tree (affalter) and stream (bach); the right half depicts a cam lobe, an engine valve, and a valve spring, representing the engineering focus co-founder Erhard Melcher brought when he and Hans Werner Aufrecht established AMG in 1967. A laurel wreath encircles both halves, tracing back to the trademark Benz and Cie. registered in 1909.

The initials tell a parallel story. A stands for Aufrecht, M for Melcher, G for Großaspach, the village near Stuttgart where Aufrecht was born. The company never started in Affalterbach; it started in a former mill in Burgstall an der Murr. Both halves of the crest hold together because they describe what AMG actually was in its first decade: a small Swabian engineering firm defined as much by its address as by the hardware it built.

The town that gave the badge its left half

Affalterbach sits roughly thirty kilometers northeast of Stuttgart, a municipality small enough that its coat of arms was not formally designed until 1936, when the Central State Archive in Stuttgart created the shield. That civic emblem, which received approval from the Federal Ministry of the Interior on May 24, 1965, shows a green apple tree bearing red apples, rooted on a white field above a wavy blue line representing the local brook. The imagery is a direct visual translation of the town's name, nothing more elaborate than that.

The company was founded in Burgstall an der Murr, in a former mill where Aufrecht and Melcher designed and tested racing engines. Their first internationally recognized result came at the 1971 24 Hours of Spa, where a heavily modified 300 SEL 6.8, nicknamed the "Red Pig" (Rote Sau) for its red livery, finished second overall and won its class outright. That result established the AMG name in European motorsport circles before the company had a permanent home of its own. AMG did not begin in Affalterbach.

Melcher himself stayed behind when the business relocated. In 1976 administrative, assembly, and sales operations moved to the new Affalterbach facility, while Melcher remained at the Burgstall site as technical expert. The operations left; the engineering core did not.

That split mattered for the crest. By the time Daimler Chrysler acquired a majority stake in 1999, AMG needed to communicate clearly that its hand-built vehicles came from a specific place and a specific process. The apple tree and the stream, drawn from a town archive that predated the company by decades, tied that claim to something AMG could not have invented.

Affalterbach's municipal coat of arms

The right half: three parts of a cylinder head

The stack is specific. A cam lobe at the top, an intake or exhaust valve in the middle, a valve spring at the bottom. Three components from a single working cylinder head.

The cam lobe's profile determines both valve lift distance and duration of opening: alter that profile and you shift the entire power band. Below it, the valve regulates flow of the air-fuel mixture in and exhaust gases out; the flow dynamics around the valve head and stem decide how efficiently the cylinder fills and clears. At the bottom, the valve spring closes the valve after each cycle. In racing engines running at high rpm, a spring that cannot return the valve to its seat fast enough allows it to "float." That destroys an engine in seconds.

Erhard Melcher's professional focus in the 1960s and 1970s was cylinder head optimization and valvetrain dynamics. These three components are not decorative stand-ins for speed; they are the specific pieces his work centered on. The connection runs into the "One Man, One Engine" manufacturing philosophy that AMG formalized after the 1999 DaimlerChrysler acquisition: under that system, a single master technician assembles an entire engine from start to finish, then signs a small aluminum plaque fixed to the engine cover. Approximately 50 certified builders work at the Affalterbach plant today, each completing six weeks of initial training plus three additional weeks for each new engine architecture. The crest functioned as an internal stamp on engine blocks and documents long before it appeared on the exterior of a car.

The laurel wreath and what it actually references

The wreath is not decoration borrowed from a trophy shelf. On August 6, 1909, Benz and Cie. registered a trademark showing the "Benz" lettering surrounded by a laurel wreath, filed specifically to commemorate athletic victories at events including the Herkomer Konkurrenz and the Daytona Beach speed trials. After the 1926 merger with Daimler-Motoren-Gesellschaft, that wreath was incorporated into the combined Mercedes-Benz trademark alongside the three-pointed star. By framing the Affalterbach crest with those same laurel branches, AMG tied its maker's mark to a racing lineage that predates the company's founding by nearly sixty years.

For most of its history, the crest stayed out of sight. It lived on engine covers visible only when a hood was raised, used as an internal stamp rather than a public emblem. External hood badge placement came in the early 2020s, when AMG replaced the standard Mercedes-Benz hood badge with the Affalterbach crest on top-tier dedicated models including the W223 S 63 E Performance and the AMG SL Roadster. The move put AMG's visual language closer to Maybach, which also uses its own hood emblem to mark its vehicles as products of a distinct division rather than variants of the standard passenger car line.

The crest has not changed as the engines underneath it have. Cam lobes and valve springs are legacy hardware in a product line that now runs four-cylinder hybrids and fully electric drivetrains, but the stamp that describes them remains on the hood. There is something a little stubborn about that. The apple tree and the stream still name the town while the valvetrain still names the work.
